Fire Protection Products
Proudly Made in America

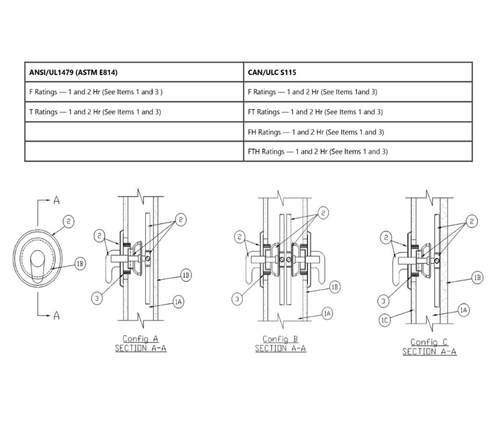

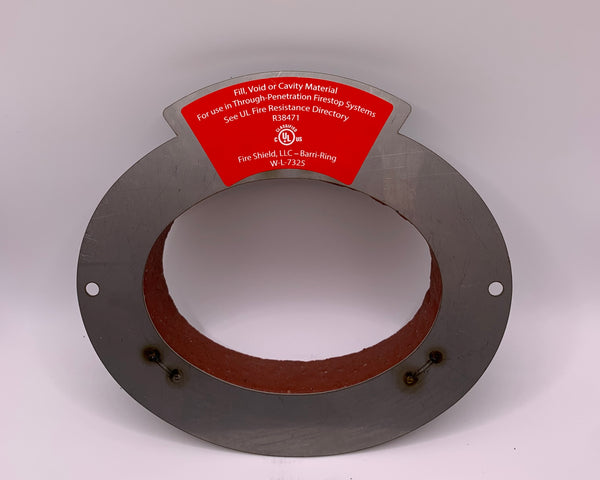

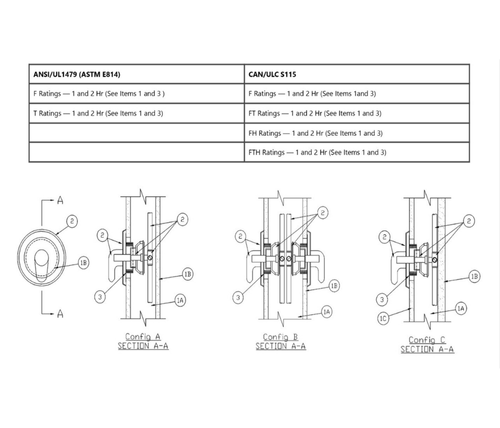

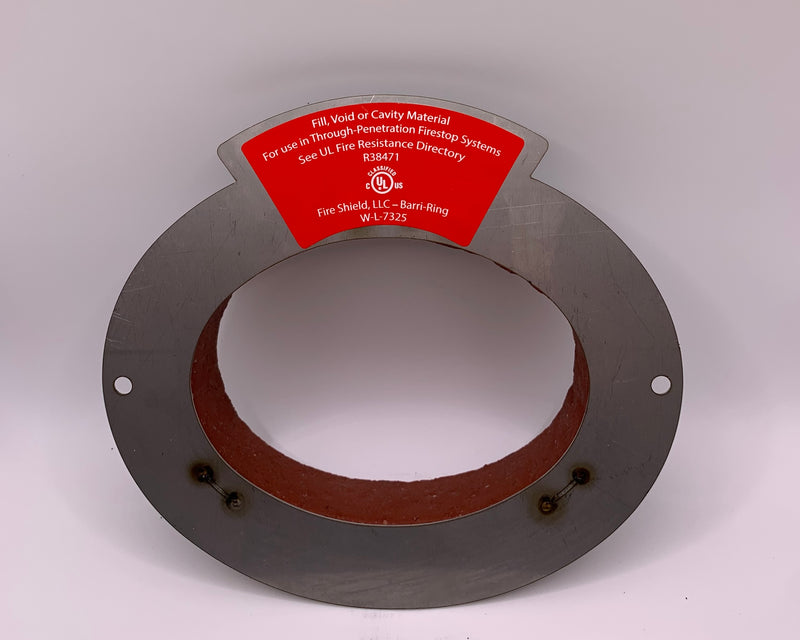

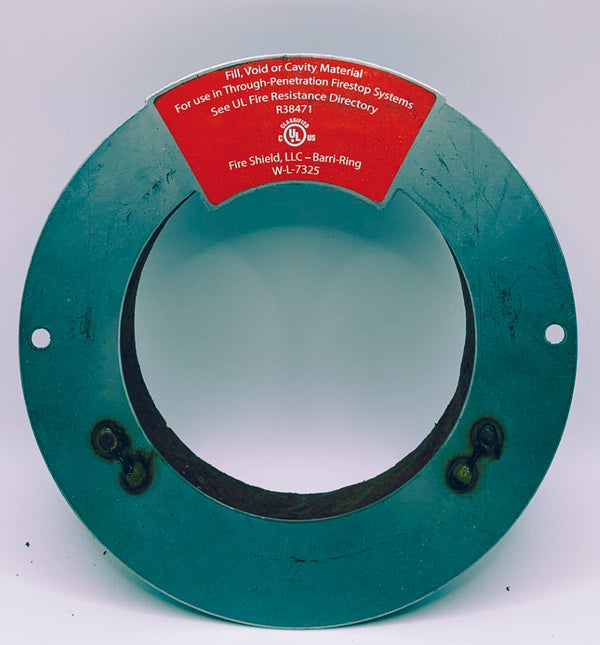

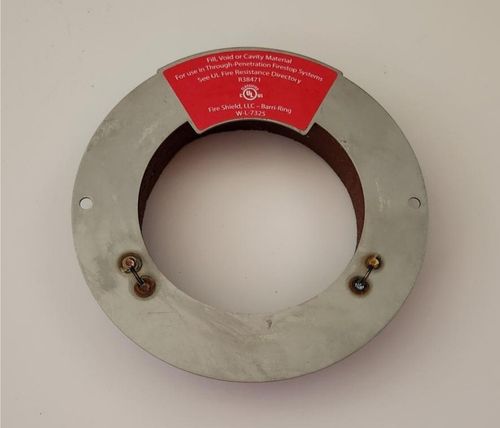

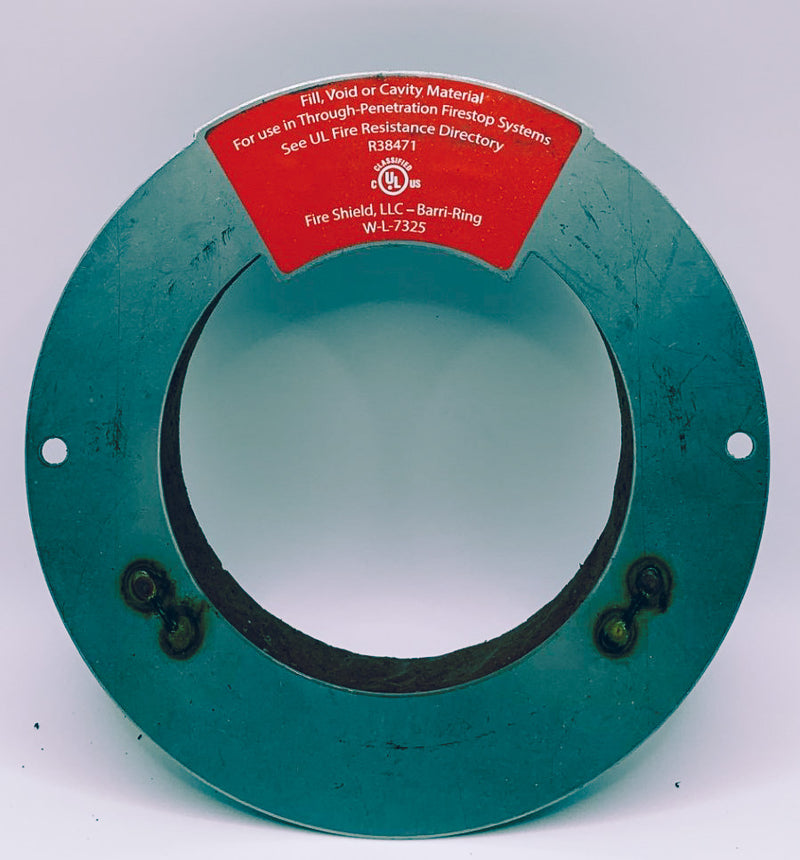

Barri-Ring


Newest Innovation!


  • UL tested and listed, W-L-7325, for shower valve penetrations with code required equal "T" rating
  • Non-metallic and metallic escutcheon plates
  • Metal and wood stud framing
  • Minimum 2-1/2 inch shaft wall included
  • Tested in back to back configurations
  • Barri-Ring constructed of Stainless Steel metal
  • Center opening allows access to the line shut-off screws
  • Barri-Ring installs into a 4½ to 5 inch hole in the gypsum
  • NO CAULKING REQUIRED!
  • Specifications at: Deltek SpecPoint/MasterSpec, RIB SpecLink , and ARCAT
  • Patent Pending. Made in the United States of America

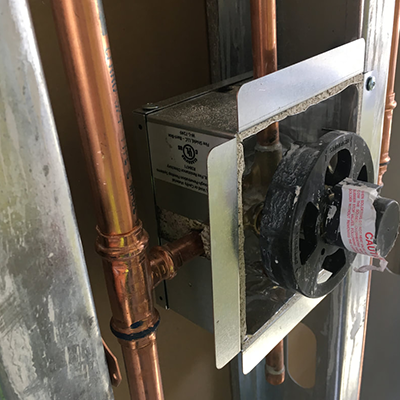

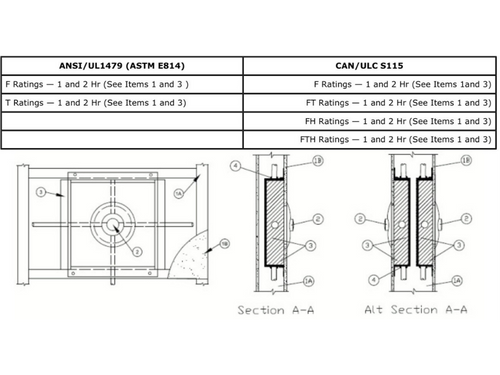

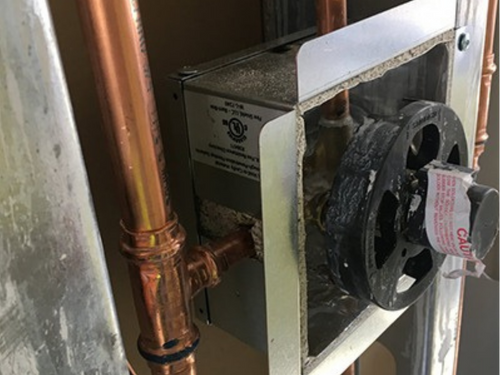

Barri-Box


  • UL tested and listed, W-L-7249, for shower valve penetrations with code required equal “T” rating
  • Non-metallic and metallic escutcheon plates
  • Metal and wood stud framing
  • Minimum 2-1/2 inch shaft wall included
  • Tested in back to back configurations
  • Barri-Box constructed of galvanized metal with separate back piece to allow for new construction and retrofit applications
  • Slots in the box allow for running supply lines through the mat material
  • Standard sizes: 7x7, 7x8, 8x8, and 10x10 in 2.75 depth. Custom sizes and depths are available
  • Specifications at: Deltek SpecPoint/MasterSpec, RIB SpecLink , and ARCAT
  • Patent Pending. Made in the United States of America

Barricade


  • UL tested and listed, W-L-7248, for membrane penetrations with code required equal "T" rating
  • Tested in metal and wood stud construction
  • Cabinets include: fire extinguisher cabinets and boxes, medicine cabinets, utility boxes, dispenser box, wall safes, etc
  • Pre-cut kit made of 3/16 inch thick intumescent mat installs withinminutes expanding during a fire to give you the protection needed
  • No caulking around the perimeter when annular space does not exceed 3/8 inch
  • Specifications at: Deltek SpecPoint/MasterSpec, RIB SpecLink , and ARCAT
  • Patent Pending. Made in the United States of America

Easy Access Grease Duct Door


  • UL 1978 tested and listed grease and liquid tight "Fitting for hood and duct penetrations" (YYXS)
  • Pre-insulated for ASTM E-2336 systems and listed with Intertek "For use with Intertek Approved Fire Resistive Grease Duct Enclosure Systems"
  • Meets requirements of NFPA 96 and all mechanical codes including no fasteners penetrating duct walls
  • Quick Access Captive fasteners allow for opening and closing of the door in under 10 seconds
  • Gasket Plate assembly with spring cane bolts keeps grease in the duct, where it belongs
  • Door body Frame installs separately, allowing wrap to butt to it, eliminating seams and taping, with the complete door installation at a substantial time savings to that of competing doors
  • Standard sizes: 6x6, 6x10, 8x12, 12x12, 12x16, 14x18 and 20x20
  • Patent Pending. Made in the United States of America
